A.) Warn A2000
or A2500 winch
B.) ATV Plow,
Electric Actuator
C.) ATV Plow,
Manual Lift
|
A.)

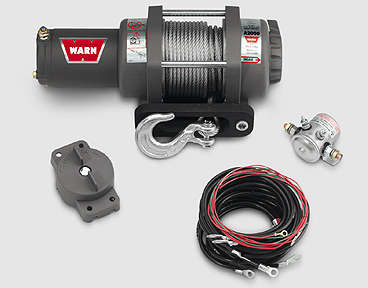

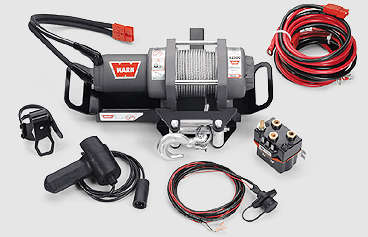

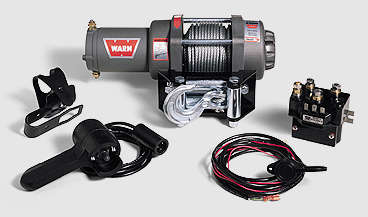

Warn A2000 or A2500 Winch.
Either
is an excellent choice if you want a multi-use piece
of equipment.
B.)
ATV Plow, Electric Actuator.
The
Warn Actuator is designed with a dual purpose in
mind. Make it easier to lift the plow than using
a manual lift and leave the winch for what it was
designed to do. The Actuator will operate only with
the ignition on and comes standard with a thermal
limiting switch. The limiting switch eliminates the
possibility of damage to the ATV, plow or Actuator.
A handlebar mounted switch can be operated without
removing your hand from the grip. This switch is
built to survive rain, cold, mud and crud and still
perform with the OEM switch gear. The Warn Actuator
is an easy to install kit that fits all Warn plows.
Each kit includes a handlebar switch, wiring harness
and all necessary hardware. Double-line rated to
lift 150 lbs.
PN
39400 ATV Plow Actuator.
In
addition to the Actuator, you'll need to order a
pulley bracket. See the plow components chart for
the part number of the pulley bracket designed to
fit your ATV.
C.)

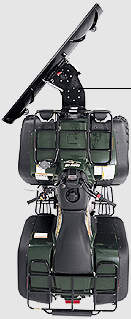

ATV Plow, Manual Lift.
Designed to mount easily to your ATV front rack, this lift
system will not interfere with the rider or the operation
of your ATV. Go to the plow components chart for
manual lift applications and part numbers. |
